Key Features
- Industrial Windows system, menu‑based audible‑visual fault alarm function
- High‑precision CCD visual positioning, visual programming for fast program setup
- X/Y axis linear motor + Z‑axis lead‑screw servo drive；max moving speed 800 mm/s；repeat accuracy ±0.015 mm
- Flexible compatibility, capable of mounting jet valve and multiple screw dispensing valves
- Optional valve constant‑temperature system to keep consistent fluid fluidity
- Optional laser height detection: automatically calibrate Z‑axis height for deformed workpieces
- Optional workpiece platform heating to improve fluidity for underfill dispensing
- Optional precision weighing system for real‑time dispensing volume monitoring to guarantee consistency
- Multiple expandable options: dual‑valve, 4‑direction tilt, booster pump, UPS, voltage stabilizer, barcode scanner, micro balance etc.
- CE safety compliance
Compatible Dispensing Materials
Thermal conductive adhesive, SMT underfill, solder paste, red glue, black glue, semiconductor packaging adhesive, wafer fixing glue and other industrial fluids.
Typical Applications
- SMT assembly, underfill & solder paste dispensing
- Semiconductor packaging, wafer fixing
- Consumer electronics component sealing & bonding
- Automotive electronics precision dispensing
- Optoelectronic and micro‑component manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TZ‑S300 |
| Dispensing Travel | X:300 mm；Y:300 mm；Z:80 mm |
| Overall Dimension(L×W×H) | 650 × 650 × 650 mm |
| Machine Weight | 70 kg |
| Control Unit | Industrial PC + motion control card |
| Operating System | Windows system proprietary dispensing software |
| Programming Method | Visual programming |
| Drive Mode | X/Y linear motor；Z‑axis servo lead‑screw |
| Max Moving Speed | 800 mm/s |
| Repeat Positioning Accuracy | ±0.015 mm |
| Standard Valve Quantity | 1 set |
| Liquid Cartridge Volume | 30CC |
| Alarm Mode | Menu display + audible‑visual alarm |
| Power Supply | 220V 50/60Hz，2.5KW |
| Working Air Pressure | ≥0.65 MPa |
| Standard Configuration | CCD Visual Positioning System |
| Safety Standard | CE |
Core Main Components
| Component | Brand |
|---|---|
| X/Y Linear Motor | Dankwell |
| Servo Drive | Gaochuang |
| Servo Motor | Siyi |
| Industrial PC | Xinchuangyun |
| Industrial Camera & Lens | Hikvision |
| Motion Controller | Googol |

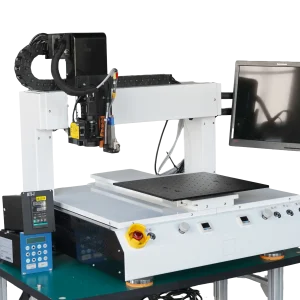

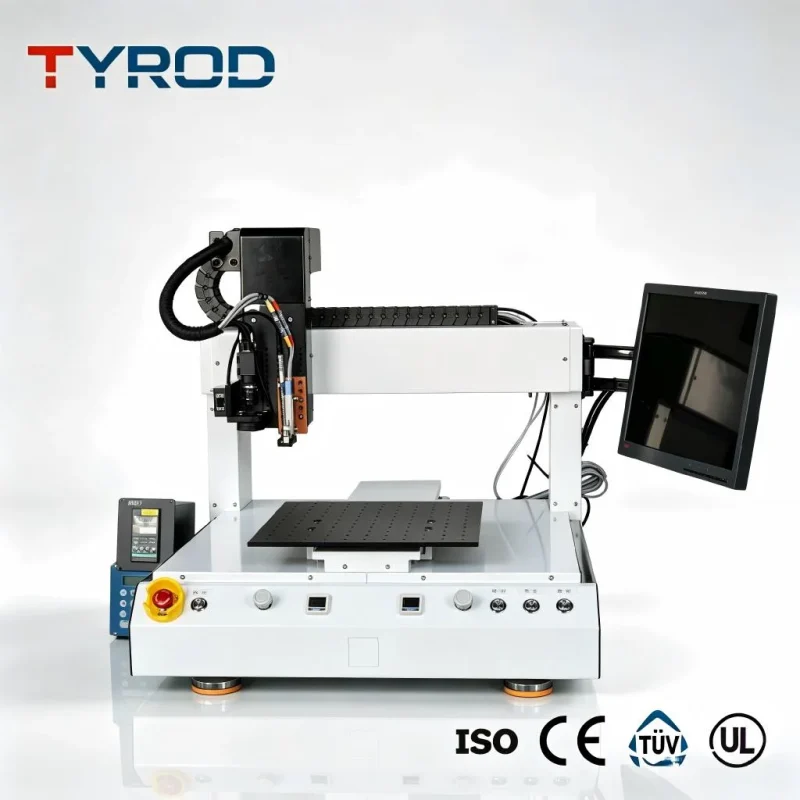

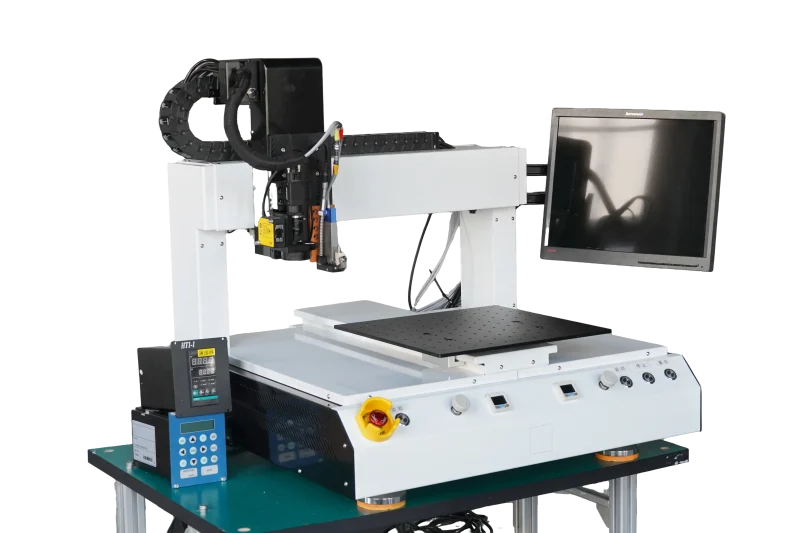

Why Choose TZ‑S300 Visual Dispensing Machine
TZ‑S300 desktop visual dispenser adopts linear‑motor high‑speed drive plus CCD vision positioning, realizing fast teaching and high‑precision dispensing. It supports mounting our full range of jet valves and screw valves. Multiple optional functions solve practical pain‑points such as workpiece deformation, glue temperature drift and volume inspection. Widely deployed for semiconductor, SMT, automotive & consumer‑electronics precision dispensing production.
